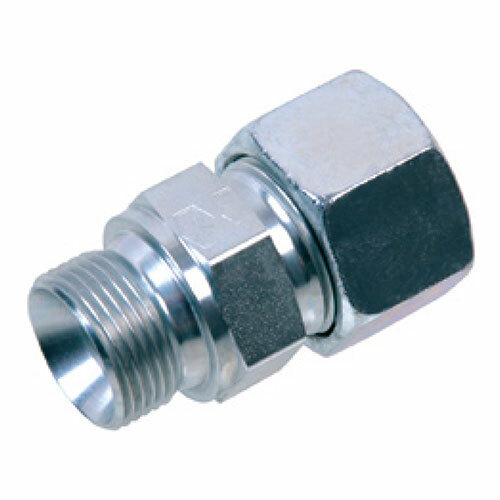

Přímá šroubení A-M
- ocelová šroubení s přímým tvarem vyrobená dle standardů norem ISO 8434-1 a 8434-4
- dodáváno v různých tlakových třídách LL – velmi lehká řada, L – lehká řada, S – těžká řada
- pracovní tlak PN je uveden pro teplotu do +120 °C a pro statický tlak podle normy DIN 2401
- pracovní teplota pro ocelová šroubení -40/+120 °C, pracovní teplota standardního těsnění NBR -35/+100 °C
- upozornění: pro šroubení použijte výhradně přesné bezešvé ocelové trubky s rozměry dle EN 10305, tělo šroubení bez matice a řezného kroužku je v obj. č. označeno písmenem X
1
2
| Obj. č. |
Tlak PN (bar) |
Závit G |
Trubka D (mm) |
Délka L1 (mm) |
Délka závitu i (mm) |
Cena bez DPH | Cena vč. DPH | Cena bez DPH | Cena vč. DPH | Skladem | Mj | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-M84LL | 100 | M8 × 1 K | 4 | 25,0 | 8,0 | 35,89 Kč | 43,43 Kč | 1,38 € | 1,67 € | 0 | ks | |
| A-M106LL | 100 | M10 × 1 K | 6 | 25,0 | 8,0 | 38,54 Kč | 46,63 Kč | 1,48 € | 1,79 € | 0 | ks | |
| A-M108LL | 100 | M10 × 1 K | 8 | 27,0 | 8,0 | 41,88 Kč | 50,67 Kč | 1,61 € | 1,95 € | 0 | ks | |
| A-M106L | 500 | M10 × 1 | 6 | 23,0 | 8,0 | 36,57 Kč | 44,25 Kč | 1,41 € | 1,71 € | 0 | ks | |
| A-M128L | 500 | M12 × 1,5 | 8 | 25,0 | 12,0 | 44,53 Kč | 53,88 Kč | 1,71 € | 2,07 € | 0 | ks | |
| A-M1410L | 500 | M14 × 1,5 | 10 | 26,0 | 12,0 | 50,52 Kč | 61,13 Kč | 1,94 € | 2,35 € | 0 | ks | |
| A-M1610L | 500 | M16 × 1,5 | 10 | 27,0 | 12,0 | 97,06 Kč | 117,44 Kč | 3,73 € | 4,51 € | 0 | ks | |
| A-M1810L | 500 | M18 × 1,5 | 10 | 27,0 | 12,0 | 134,29 Kč | 162,49 Kč | 5,17 € | 6,26 € | 0 | ks | |
| A-M2210L | 500 | M22 × 1,5 | 10 | 29,0 | 14,0 | 250,60 Kč | 303,23 Kč | 9,64 € | 11,66 € | 0 | ks | |
| A-M1412L | 400 | M14 × 1,5 | 12 | 26,0 | 12,0 | 186,13 Kč | 225,22 Kč | 7,16 € | 8,66 € | 0 | ks | |
| A-M1612L | 400 | M16 × 1,5 | 12 | 27,0 | 12,0 | 66,47 Kč | 80,43 Kč | 2,56 € | 3,10 € | 0 | ks | |
| A-M1812L | 400 | M18 × 1,5 | 12 | 27,0 | 12,0 | 119,65 Kč | 144,78 Kč | 4,60 € | 5,57 € | 0 | ks | |
| A-M2212L | 400 | M22 × 1,5 | 12 | 29,0 | 14,0 | 134,94 Kč | 163,28 Kč | 5,19 € | 6,28 € | 0 | ks | |
| A-M1615L | 400 | M16 × 1,5 | 15 | 28,0 | 12,0 | 200,76 Kč | 242,92 Kč | 7,72 € | 9,34 € | 0 | ks | |
| A-M1815L | 400 | M18 × 1,5 | 15 | 29,0 | 12,0 | 81,76 Kč | 98,93 Kč | 3,14 € | 3,80 € | 0 | ks | |
| A-M2215L | 400 | M22 × 1,5 | 15 | 30,0 | 14,0 | 145,58 Kč | 176,15 Kč | 5,60 € | 6,78 € | 0 | ks | |
| A-M1818L | 400 | M18 × 1,5 | 18 | 30,0 | 12,0 | 133,60 Kč | 161,66 Kč | 5,14 € | 6,22 € | 0 | ks | |
| A-M2218L | 400 | M22 × 1,5 | 18 | 31,0 | 14,0 | 118,99 Kč | 143,98 Kč | 4,58 € | 5,54 € | 0 | ks | |
| A-M2222L | 250 | M22 × 1,5 | 22 | 33,0 | 14,0 | 561,71 Kč | 679,67 Kč | 21,60 € | 26,14 € | 0 | ks | |
| A-M2622L | 250 | M26 × 1,5 | 22 | 33,0 | 16,0 | 182,13 Kč | 220,38 Kč | 7,01 € | 8,48 € | 0 | ks | |
| A-M3328L | 250 | M33 × 2 | 28 | 34,0 | 18,0 | 315,76 Kč | 382,07 Kč | 12,14 € | 14,69 € | 0 | ks | |
| A-M4235L | 250 | M42 × 2 | 35 | 39,0 | 20,0 | 453,36 Kč | 548,57 Kč | 17,44 € | 21,10 € | 0 | ks | |
| A-M4842L | 250 | M48 × 2 | 42 | 42,0 | 22,0 | 557,72 Kč | 674,84 Kč | 21,45 € | 25,95 € | 0 | ks | |
| A-M126S | 800 | M12 × 1,5 | 6 | 28,0 | 12,0 | 49,87 Kč | 60,34 Kč | 1,92 € | 2,32 € | 0 | ks | |
| A-M148S | 800 | M14 × 1,5 | 8 | 30,0 | 12,0 | 55,18 Kč | 66,77 Kč | 2,12 € | 2,57 € | 0 | ks | |
| A-M1610S | 800 | M16 × 1,5 | 10 | 31,0 | 12,0 | 69,81 Kč | 84,47 Kč | 2,69 € | 3,25 € | 0 | ks | |
| A-M1812S | 630 | M18 × 1,5 | 12 | 33,0 | 12,0 | 83,76 Kč | 101,35 Kč | 3,22 € | 3,90 € | 0 | ks | |
| A-M2212S | 630 | M22 × 1,5 | 12 | 34,0 | 14,0 | 494,56 Kč | 598,42 Kč | 19,02 € | 23,01 € | 0 | ks | |
| A-M2014S | 630 | M20 × 1,5 | 14 | 37,0 | 14,0 | 140,93 Kč | 170,53 Kč | 5,42 € | 6,56 € | 0 | ks | |
| A-M1816S | 630 | M18 × 1,5 | 16 | 36,0 | 12,0 | 255,93 Kč | 309,68 Kč | 9,84 € | 11,91 € | 0 | ks | |
| A-M2216S | 630 | M22 × 1,5 | 16 | 37,0 | 14,0 | 133,60 Kč | 161,66 Kč | 5,14 € | 6,22 € | 0 | ks | |
| A-M2720S | 400 | M27 × 2 | 20 | 42,0 | 16,0 | 202,07 Kč | 244,50 Kč | 7,77 € | 9,40 € | 0 | ks | |
| A-M3325S | 400 | M33 × 2 | 25 | 47,0 | 18,0 | 343,01 Kč | 415,04 Kč | 13,19 € | 15,96 € | 0 | ks | |
| A-M4230S | 400 | M42 × 2 | 30 | 50,0 | 20,0 | 555,72 Kč | 672,42 Kč | 21,37 € | 25,86 € | 0 | ks | |
| A-M4838S | 400 | M48 × 2 | 38 | 57,0 | 22,0 | 690,67 Kč | 835,71 Kč | 26,56 € | 32,14 € | 0 | ks | |
| XA-M84LL | 100 | M8 × 1 K | 4 | 25,0 | 8,0 | 18,60 Kč | 22,51 Kč | 0,72 € | 0,87 € | 0 | ks | |
| XA-M106LL | 100 | M10 × 1 K | 6 | 25,0 | 8,0 | 21,28 Kč | 25,75 Kč | 0,82 € | 0,99 € | 0 | ks | |
| XA-M108LL | 100 | M10 × 1 K | 8 | 27,0 | 8,0 | 23,94 Kč | 28,97 Kč | 0,92 € | 1,11 € | 0 | ks | |
| XA-M106L | 500 | M10 × 1 | 6 | 23,0 | 8,0 | 19,28 Kč | 23,33 Kč | 0,74 € | 0,90 € | 0 | ks | |
| XA-M128L | 500 | M12 × 1,5 | 8 | 25,0 | 12,0 | 25,93 Kč | 31,38 Kč | 1,00 € | 1,21 € | 0 | ks |
Pro více informací o produktech prosím pište na nabidky@vskprofi.cz, nebo volejte +420 377 152 222.
