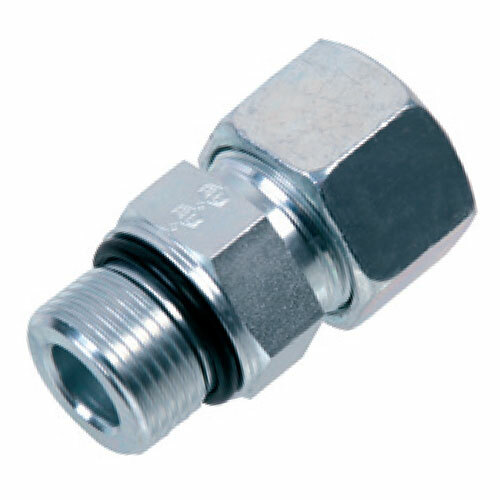

Přímá šroubení AW-G
- ocelová šroubení s přímým tvarem vyrobená dle standardů norem ISO 8434-1 a 8434-4
- dodáváno v různých tlakových třídách LL – velmi lehká řada, L – lehká řada, S – těžká řada
- pracovní tlak PN je uveden pro teplotu do +120 °C a pro statický tlak podle normy DIN 2401
- pracovní teplota pro ocelová šroubení -40/+120 °C, pracovní teplota standardního těsnění NBR -35/+100 °C
- upozornění: pro šroubení použijte výhradně přesné bezešvé ocelové trubky s rozměry dle EN 10305, tělo šroubení bez matice a řezného kroužku je v obj. č. označeno písmenem X
1
2
| Obj. č. |
Tlak PN (bar) |
Závit G |
Trubka D (mm) |
Délka L1 (mm) |
Délka závitu i (mm) |
Cena bez DPH | Cena vč. DPH | Cena bez DPH | Cena vč. DPH | Skladem | Mj | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AW-G186L | 500 | G 1/8" | 6 | 23,0 | 8,0 | 44,36 Kč | 53,68 Kč | 1,71 € | 2,07 € | 0 | ks | |
| AW-G146L | 500 | G 1/4" | 6 | 25,0 | 12,0 | 61,58 Kč | 74,51 Kč | 2,37 € | 2,87 € | 0 | ks | |
| AW-G188L | 500 | G 1/8" | 8 | 23,0 | 8,0 | 78,80 Kč | 95,35 Kč | 3,03 € | 3,67 € | 0 | ks | |
| AW-G148L | 500 | G 1/4" | 8 | 25,0 | 12,0 | 54,96 Kč | 66,50 Kč | 2,11 € | 2,55 € | 0 | ks | |
| AW-G388L | 500 | G 3/8" | 8 | 26,0 | 12,0 | 74,17 Kč | 89,75 Kč | 2,85 € | 3,45 € | 0 | ks | |
| AW-G1410L | 500 | G 1/4" | 10 | 26,0 | 12,0 | 58,26 Kč | 70,49 Kč | 2,24 € | 2,71 € | 3 - 5 | ks | |
| AW-G3810L | 500 | G 3/8" | 10 | 27,0 | 12,0 | 72,84 Kč | 88,14 Kč | 2,80 € | 3,39 € | 0 | ks | |
| AW-G1210L | 500 | G 1/2" | 10 | 28,0 | 14,0 | 111,23 Kč | 134,59 Kč | 4,28 € | 5,18 € | 0 | ks | |
| AW-G1412L | 400 | G 1/4" | 12 | 27,0 | 12,0 | 78,80 Kč | 95,35 Kč | 3,03 € | 3,67 € | 0 | ks | |
| AW-G3812L | 400 | G 3/8" | 12 | 27,0 | 12,0 | 73,49 Kč | 88,92 Kč | 2,83 € | 3,42 € | 0 | ks | |
| AW-G1212L | 400 | G 1/2" | 12 | 28,0 | 14,0 | 104,61 Kč | 126,58 Kč | 4,02 € | 4,86 € | 0 | ks | |
| AW-G3815L | 400 | G 3/8" | 15 | 29,0 | 12,0 | 116,54 Kč | 141,01 Kč | 4,48 € | 5,42 € | 0 | ks | |
| AW-G1215L | 400 | G 1/2" | 15 | 29,0 | 14,0 | 100,66 Kč | 121,80 Kč | 3,87 € | 4,68 € | 0 | ks | |
| AW-G1218L | 400 | G 1/2" | 18 | 31,0 | 14,0 | 125,15 Kč | 151,43 Kč | 4,81 € | 5,82 € | 0 | ks | |
| AW-G3418L | 400 | G 3/4" | 18 | 31,0 | 16,0 | 217,86 Kč | 263,61 Kč | 8,38 € | 10,14 € | 0 | ks | |
| AW-G3422L | 250 | G 3/4" | 22 | 33,0 | 16,0 | 177,45 Kč | 214,71 Kč | 6,83 € | 8,26 € | 0 | ks | |
| AW-G1028L | 250 | G 1" | 28 | 34,0 | 18,0 | 323,80 Kč | 391,80 Kč | 12,45 € | 15,06 € | 0 | ks | |
| AW-G5435L | 250 | G 1 1/4" | 35 | 39,0 | 20,0 | 466,15 Kč | 564,04 Kč | 17,93 € | 21,70 € | 0 | ks | |
| AW-G1542L | 250 | G 1 1/2" | 42 | 42,0 | 22,0 | 558,20 Kč | 675,42 Kč | 21,47 € | 25,98 € | 0 | ks | |
| AW-G146S | 800 | G 1/4" | 6 | 28,0 | 12,0 | 58,26 Kč | 70,49 Kč | 2,24 € | 2,71 € | 0 | ks | |
| AW-G148S | 800 | G 1/4" | 8 | 30,0 | 12,0 | 62,92 Kč | 76,13 Kč | 2,42 € | 2,93 € | 0 | ks | |
| AW-G388S | 800 | G 3/8" | 8 | 30,0 | 12,0 | 136,41 Kč | 165,06 Kč | 5,25 € | 6,35 € | 0 | ks | |
| AW-G1410S | 800 | G 1/4" | 10 | 31,0 | 12,0 | 106,60 Kč | 128,99 Kč | 4,10 € | 4,96 € | 0 | ks | |
| AW-G3810S | 800 | G 3/8" | 10 | 31,0 | 12,0 | 78,80 Kč | 95,35 Kč | 3,03 € | 3,67 € | 0 | ks | |
| AW-G1210S | 800 | G 1/2" | 10 | 34,0 | 14,0 | 117,20 Kč | 141,81 Kč | 4,51 € | 5,46 € | 0 | ks | |
| AW-G1412S | 630 | G 1/4" | 12 | 33,0 | 12,0 | 137,72 Kč | 166,64 Kč | 5,30 € | 6,41 € | 0 | ks | |
| AW-G3812S | 630 | G 3/8" | 12 | 33,0 | 12,0 | 85,42 Kč | 103,36 Kč | 3,29 € | 3,98 € | 0 | ks | |
| AW-G1212S | 630 | G 1/2" | 12 | 34,0 | 14,0 | 102,65 Kč | 124,21 Kč | 3,95 € | 4,78 € | 0 | ks | |
| AW-G1214S | 630 | G 1/2" | 14 | 37,0 | 14,0 | 141,70 Kč | 171,46 Kč | 5,45 € | 6,59 € | 0 | ks | |
| AW-G1216S | 630 | G 1/2" | 16 | 37,0 | 14,0 | 137,06 Kč | 165,84 Kč | 5,27 € | 6,38 € | 0 | ks | |
| AW-G3816S | 630 | G 3/8" | 16 | 36,0 | 12,0 | 260,88 Kč | 315,66 Kč | 10,03 € | 12,14 € | 0 | ks | |
| AW-G3416S | 630 | G 3/4" | 16 | 39,0 | 16,0 | 217,18 Kč | 262,79 Kč | 8,35 € | 10,10 € | 0 | ks | |
| AW-G3420S | 400 | G 3/4" | 20 | 42,0 | 16,0 | 199,98 Kč | 241,98 Kč | 7,69 € | 9,30 € | 0 | ks | |
| AW-G1225S | 400 | G 1/2" | 25 | 47,0 | 14,0 | 856,16 Kč | 1 035,95 Kč | 32,93 € | 39,85 € | 0 | ks | |
| AW-G1025S | 400 | G 1" | 25 | 47,0 | 18,0 | 348,30 Kč | 421,44 Kč | 13,40 € | 16,21 € | 0 | ks | |
| AW-G5430S | 400 | G 1 1/4" | 30 | 50,0 | 20,0 | 529,07 Kč | 640,17 Kč | 20,35 € | 24,62 € | 0 | ks | |
| AW-G1538S | 400 | G 1 1/2" | 38 | 57,0 | 22,0 | 665,47 Kč | 805,22 Kč | 25,60 € | 30,98 € | 0 | ks | |
| XAW-G186L | 500 | G 1/8" | 6 | 23,0 | 8,0 | 27,82 Kč | 33,66 Kč | 1,07 € | 1,29 € | 0 | ks | |
| XAW-G146L | 500 | G 1/4" | 6 | 25,0 | 12,0 | 45,02 Kč | 54,47 Kč | 1,73 € | 2,09 € | 0 | ks | |
| XAW-G188L | 500 | G 1/8" | 8 | 23,0 | 8,0 | 61,58 Kč | 74,51 Kč | 2,37 € | 2,87 € | 0 | ks |
Pro více informací o produktech prosím pište na nabidky@vskprofi.cz, nebo volejte +420 377 152 222.
