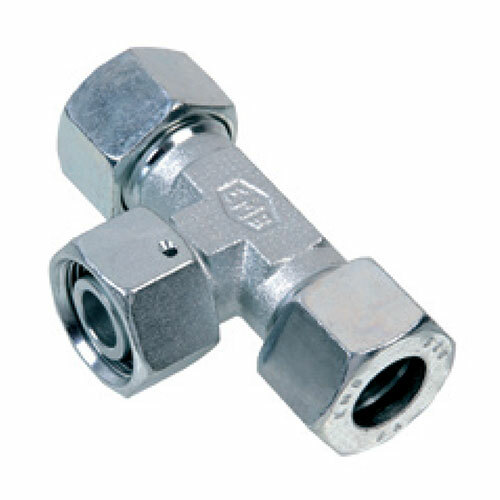

T-šroubení VCK
- ocelová t-šroubení a x-šroubení vyrobená dle standardů norem ISO 8434-1 a 8434-4
- dodáváno v různých tlakových třídách LL – velmi lehká řada, L – lehká řada, S – těžká řada
- pracovní tlak PN je uveden pro teplotu do +120 °C a pro statický tlak podle normy DIN 2401
- pracovní teplota pro ocelová šroubení -40/+120 °C, pracovní teplota standardního těsnění NBR -35/+100 °C
- upozornění: pro šroubení použijte výhradně přesné bezešvé ocelové trubky s rozměry dle EN 10305, tělo šroubení bez matice a řezného kroužku je v obj. č. označeno písmenem X
| Obj. č. |
Tlak PN (bar) |
Závit |
Trubka D (mm) |
Délka L (mm) |
Výška L2 (mm) |
Cena bez DPH | Cena vč. DPH | Cena bez DPH | Cena vč. DPH | Skladem | Mj | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VCK-6L | 500 | M12 × 1,5 | 6 | 27,0 | 26,0 | 268,35 Kč | 324,70 Kč | 10,01 € | 12,11 € | 0 | ks | |
| VCK-8L | 500 | M14 × 1,5 | 8 | 29,0 | 27,5 | 280,22 Kč | 339,07 Kč | 10,46 € | 12,66 € | 0 | ks | |
| VCK-10L | 500 | M16 × 1,5 | 10 | 30,0 | 29,0 | 312,38 Kč | 377,98 Kč | 11,66 € | 14,11 € | 0 | ks | |
| VCK-12L | 400 | M18 × 1,5 | 12 | 32,0 | 29,5 | 329,84 Kč | 399,11 Kč | 12,31 € | 14,90 € | 0 | ks | |
| VCK-15L | 400 | M22 × 1,5 | 15 | 36,0 | 32,5 | 431,88 Kč | 522,57 Kč | 16,11 € | 19,49 € | 0 | ks | |
| VCK-18L | 400 | M26 × 1,5 | 18 | 40,0 | 35,5 | 587,70 Kč | 711,12 Kč | 21,93 € | 26,54 € | 0 | ks | |
| VCK-22L | 250 | M30 × 2 | 22 | 44,0 | 38,5 | 909,15 Kč | 1 100,07 Kč | 33,92 € | 41,04 € | 0 | ks | |
| VCK-28L | 250 | M36 × 2 | 28 | 47,0 | 41,5 | 1 348,70 Kč | 1 631,93 Kč | 50,32 € | 60,89 € | 0 | ks | |
| VCK-35L | 250 | M45 × 2 | 35 | 56,0 | 51,0 | 1 805,03 Kč | 2 184,09 Kč | 67,35 € | 81,49 € | 0 | ks | |
| VCK-42L | 250 | M52 × 2 | 42 | 63,0 | 56,0 | 2 719,07 Kč | 3 290,07 Kč | 101,46 € | 122,77 € | 0 | ks | |
| VCK-6S | 800 | M14 × 1,5 | 6 | 31,0 | 27,0 | 332,64 Kč | 402,49 Kč | 12,41 € | 15,02 € | 0 | ks | |
| VCK-8S | 800 | M16 × 1,5 | 8 | 32,0 | 27,5 | 333,34 Kč | 403,34 Kč | 12,44 € | 15,05 € | 0 | ks | |
| VCK-10S | 800 | M18 × 1,5 | 10 | 34,0 | 30,0 | 367,58 Kč | 444,77 Kč | 13,72 € | 16,60 € | 0 | ks | |
| VCK-12S | 630 | M20 × 1,5 | 12 | 38,0 | 31,0 | 419,29 Kč | 507,34 Kč | 15,65 € | 18,94 € | 0 | ks | |
| VCK-14S | 630 | M22 × 1,5 | 14 | 40,0 | 35,0 | 1 264,14 Kč | 1 529,61 Kč | 47,17 € | 57,08 € | 0 | ks | |
| VCK-16S | 630 | M24 × 1,5 | 16 | 43,0 | 36,5 | 614,25 Kč | 743,24 Kč | 22,92 € | 27,73 € | 0 | ks | |
| VCK-20S | 400 | M30 × 2 | 20 | 48,0 | 44,5 | 965,05 Kč | 1 167,71 Kč | 36,01 € | 43,57 € | 0 | ks | |
| VCK-25S | 400 | M36 × 2 | 25 | 54,0 | 50,0 | 1 439,54 Kč | 1 741,84 Kč | 53,71 € | 64,99 € | 0 | ks | |
| VCK-30S | 400 | M42 × 2 | 30 | 62,0 | 55,0 | 1 839,25 Kč | 2 225,49 Kč | 68,63 € | 83,04 € | 0 | ks | |
| VCK-38S | 400 | M52 × 2 | 38 | 72,0 | 63,0 | 2 921,02 Kč | 3 534,43 Kč | 108,99 € | 131,88 € | 0 | ks | |
| XVCK-6L | 500 | M12 × 1,5 | 6 | 27,0 | 26,0 | 231,30 Kč | 279,87 Kč | 8,63 € | 10,44 € | 0 | ks | |
| XVCK-8L | 500 | M14 × 1,5 | 8 | 29,0 | 27,5 | 241,08 Kč | 291,71 Kč | 9,00 € | 10,89 € | 0 | ks | |
| XVCK-10L | 500 | M16 × 1,5 | 10 | 30,0 | 29,0 | 272,55 Kč | 329,79 Kč | 10,17 € | 12,31 € | 0 | ks | |
| XVCK-12L | 400 | M18 × 1,5 | 12 | 32,0 | 29,5 | 273,94 Kč | 331,47 Kč | 10,22 € | 12,37 € | 0 | ks | |
| XVCK-15L | 400 | M22 × 1,5 | 15 | 36,0 | 32,5 | 360,58 Kč | 436,30 Kč | 13,45 € | 16,27 € | 0 | ks | |
| XVCK-18L | 400 | M26 × 1,5 | 18 | 40,0 | 35,5 | 466,82 Kč | 564,85 Kč | 17,42 € | 21,08 € | 0 | ks | |
| XVCK-22L | 250 | M30 × 2 | 22 | 44,0 | 38,5 | 744,92 Kč | 901,35 Kč | 27,80 € | 33,64 € | 0 | ks | |
| XVCK-28L | 250 | M36 × 2 | 28 | 47,0 | 41,5 | 1 071,98 Kč | 1 297,10 Kč | 40,00 € | 48,40 € | 0 | ks | |
| XVCK-35L | 250 | M45 × 2 | 35 | 56,0 | 51,0 | 1 424,86 Kč | 1 724,08 Kč | 53,17 € | 64,34 € | 0 | ks | |
| XVCK-42L | 250 | M52 × 2 | 42 | 63,0 | 56,0 | 2 264,15 Kč | 2 739,62 Kč | 84,48 € | 102,22 € | 0 | ks | |
| XVCK-6S | 800 | M14 × 1,5 | 6 | 31,0 | 27,0 | 297,01 Kč | 359,38 Kč | 11,08 € | 13,41 € | 0 | ks | |
| XVCK-8S | 800 | M16 × 1,5 | 8 | 32,0 | 27,5 | 294,90 Kč | 356,83 Kč | 11,00 € | 13,31 € | 0 | ks | |
| XVCK-10S | 800 | M18 × 1,5 | 10 | 34,0 | 30,0 | 315,85 Kč | 382,18 Kč | 11,79 € | 14,27 € | 0 | ks | |
| XVCK-12S | 630 | M20 × 1,5 | 12 | 38,0 | 31,0 | 356,38 Kč | 431,22 Kč | 13,30 € | 16,09 € | 0 | ks | |
| XVCK-14S | 630 | M22 × 1,5 | 14 | 40,0 | 35,0 | 1 157,93 Kč | 1 401,10 Kč | 43,21 € | 52,28 € | 0 | ks | |
| XVCK-16S | 630 | M24 × 1,5 | 16 | 43,0 | 36,5 | 487,08 Kč | 589,37 Kč | 18,17 € | 21,99 € | 0 | ks | |
| XVCK-20S | 400 | M30 × 2 | 20 | 48,0 | 44,5 | 782,67 Kč | 947,03 Kč | 29,20 € | 35,33 € | 0 | ks | |
| XVCK-25S | 400 | M36 × 2 | 25 | 54,0 | 50,0 | 1 128,57 Kč | 1 365,57 Kč | 42,11 € | 50,95 € | 0 | ks | |
| XVCK-30S | 400 | M42 × 2 | 30 | 62,0 | 55,0 | 1 440,95 Kč | 1 743,55 Kč | 53,77 € | 65,06 € | 0 | ks | |
| XVCK-38S | 400 | M52 × 2 | 38 | 72,0 | 63,0 | 2 354,30 Kč | 2 848,70 Kč | 87,85 € | 106,30 € | 0 | ks |
