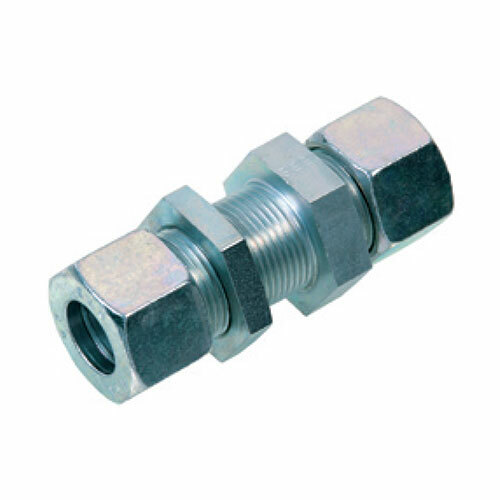

Průchodky K
- ocelová šroubení s přímým tvarem vyrobená dle standardů norem ISO 8434-1 a 8434-4
- dodáváno v různých tlakových třídách LL – velmi lehká řada, L – lehká řada, S – těžká řada
- pracovní tlak PN je uveden pro teplotu do +120 °C a pro statický tlak podle normy DIN 2401
- pracovní teplota pro ocelová šroubení -40/+120 °C, pracovní teplota standardního těsnění NBR -35/+100 °C
- upozornění: pro šroubení použijte výhradně přesné bezešvé ocelové trubky s rozměry dle EN 10305, tělo šroubení s kontramatkami, bez matice a řezného kroužku je v obj. č. označeno písmenem X
| Obj. č. |
Tlak PN (bar) |
Trubka D1 (mm) |
Závit M |
Délka L1 (mm) |
Délka L3 (mm) |
Cena bez DPH | Cena vč. DPH | Cena bez DPH | Cena vč. DPH | Skladem | Mj | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K-6L | 500 | 6 | M12 × 1,5 | 22,0 | 42,0 | 110,41 Kč | 133,60 Kč | 4,12 € | 4,99 € | 0 | ks | |
| K-8L | 500 | 8 | M14 × 1,5 | 23,0 | 42,0 | 113,91 Kč | 137,83 Kč | 4,25 € | 5,14 € | 21 - 50 | ks | |
| K-10L | 500 | 10 | M16 × 1,5 | 25,0 | 43,0 | 139,07 Kč | 168,27 Kč | 5,19 € | 6,28 € | 0 | ks | |
| K-12L | 400 | 12 | M18 × 1,5 | 25,0 | 44,0 | 167,00 Kč | 202,07 Kč | 6,23 € | 7,54 € | 21 - 50 | ks | |
| K-15L | 400 | 15 | M22 × 1,5 | 27,0 | 46,0 | 246,67 Kč | 298,47 Kč | 9,20 € | 11,13 € | 0 | ks | |
| K-18L | 400 | 18 | M26 × 1,5 | 30,0 | 49,0 | 389,93 Kč | 471,82 Kč | 14,55 € | 17,61 € | 0 | ks | |
| K-22L | 250 | 22 | M30 × 2 | 33,0 | 51,0 | 501,76 Kč | 607,13 Kč | 18,72 € | 22,65 € | 0 | ks | |
| K-28L | 250 | 28 | M36 × 2 | 35,0 | 52,0 | 765,88 Kč | 926,71 Kč | 28,58 € | 34,58 € | 0 | ks | |
| K-35L | 250 | 35 | M45 × 2 | 40,0 | 58,0 | 1 199,15 Kč | 1 450,97 Kč | 44,74 € | 54,14 € | 0 | ks | |
| K-42L | 250 | 42 | M52 × 2 | 42,0 | 59,0 | 1 607,26 Kč | 1 944,78 Kč | 59,97 € | 72,56 € | 0 | ks | |
| K-6S | 800 | 6 | M14 × 1,5 | 27,0 | 44,0 | 146,74 Kč | 177,56 Kč | 5,48 € | 6,63 € | 0 | ks | |
| K-8S | 800 | 8 | M16 × 1,5 | 28,0 | 44,0 | 158,64 Kč | 191,95 Kč | 5,92 € | 7,16 € | 0 | ks | |
| K-10S | 800 | 10 | M18 × 1,5 | 31,0 | 46,0 | 187,99 Kč | 227,47 Kč | 7,01 € | 8,48 € | 0 | ks | |
| K-12S | 630 | 12 | M20 × 1,5 | 31,0 | 47,0 | 239,69 Kč | 290,02 Kč | 8,94 € | 10,82 € | 0 | ks | |
| K-14S | 630 | 14 | M22 × 1,5 | 35,0 | 50,0 | 404,61 Kč | 489,58 Kč | 15,10 € | 18,27 € | 0 | ks | |
| K-16S | 630 | 16 | M24 × 1,5 | 35,0 | 50,0 | 394,13 Kč | 476,90 Kč | 14,71 € | 17,80 € | 0 | ks | |
| K-20S | 400 | 20 | M30 × 2 | 39,0 | 55,0 | 606,58 Kč | 733,96 Kč | 22,63 € | 27,38 € | 0 | ks | |
| K-25S | 400 | 25 | M36 × 2 | 44,0 | 59,0 | 972,05 Kč | 1 176,18 Kč | 36,27 € | 43,89 € | 0 | ks | |
| K-30S | 400 | 30 | M42 × 2 | 48,0 | 64,0 | 1 215,22 Kč | 1 470,42 Kč | 45,34 € | 54,86 € | 0 | ks | |
| K-38S | 400 | 38 | M52 × 2 | 53,0 | 68,0 | 1 962,95 Kč | 2 375,17 Kč | 73,24 € | 88,62 € | 0 | ks | |
| XK-6L | 500 | 6 | M12 × 1,5 | 22,0 | 42,0 | 74,08 Kč | 89,64 Kč | 2,76 € | 3,34 € | 0 | ks | |
| XK-8L | 500 | 8 | M14 × 1,5 | 23,0 | 42,0 | 74,77 Kč | 90,47 Kč | 2,79 € | 3,38 € | 0 | ks | |
| XK-10L | 500 | 10 | M16 × 1,5 | 25,0 | 43,0 | 95,04 Kč | 115,00 Kč | 3,55 € | 4,30 € | 0 | ks | |
| XK-12L | 400 | 12 | M18 × 1,5 | 25,0 | 44,0 | 113,22 Kč | 137,00 Kč | 4,22 € | 5,11 € | 0 | ks | |
| XK-15L | 400 | 15 | M22 × 1,5 | 27,0 | 46,0 | 176,09 Kč | 213,07 Kč | 6,57 € | 7,95 € | 0 | ks | |
| XK-18L | 400 | 18 | M26 × 1,5 | 30,0 | 49,0 | 269,74 Kč | 326,39 Kč | 10,06 € | 12,17 € | 0 | ks | |
| XK-22L | 250 | 22 | M30 × 2 | 33,0 | 51,0 | 337,53 Kč | 408,41 Kč | 12,59 € | 15,23 € | 0 | ks | |
| XK-28L | 250 | 28 | M36 × 2 | 35,0 | 52,0 | 489,17 Kč | 591,90 Kč | 18,25 € | 22,08 € | 0 | ks | |
| XK-35L | 250 | 35 | M45 × 2 | 40,0 | 58,0 | 819,70 Kč | 991,84 Kč | 30,59 € | 37,01 € | 0 | ks | |
| XK-42L | 250 | 42 | M52 × 2 | 42,0 | 59,0 | 1 171,21 Kč | 1 417,16 Kč | 43,70 € | 52,88 € | 0 | ks | |
| XK-6S | 800 | 6 | M14 × 1,5 | 27,0 | 44,0 | 108,32 Kč | 131,07 Kč | 4,04 € | 4,89 € | 0 | ks | |
| XK-8S | 800 | 8 | M16 × 1,5 | 28,0 | 44,0 | 116,69 Kč | 141,19 Kč | 4,35 € | 5,26 € | 0 | ks | |
| XK-10S | 800 | 10 | M18 × 1,5 | 31,0 | 46,0 | 136,26 Kč | 164,87 Kč | 5,08 € | 6,15 € | 0 | ks | |
| XK-12S | 630 | 12 | M20 × 1,5 | 31,0 | 47,0 | 177,51 Kč | 214,79 Kč | 6,62 € | 8,01 € | 0 | ks | |
| XK-14S | 630 | 14 | M22 × 1,5 | 35,0 | 50,0 | 303,29 Kč | 366,98 Kč | 11,32 € | 13,70 € | 0 | ks | |
| XK-16S | 630 | 16 | M24 × 1,5 | 35,0 | 50,0 | 267,65 Kč | 323,86 Kč | 9,99 € | 12,09 € | 0 | ks | |
| XK-20S | 400 | 20 | M30 × 2 | 39,0 | 55,0 | 424,87 Kč | 514,09 Kč | 15,85 € | 19,18 € | 0 | ks | |
| XK-25S | 400 | 25 | M36 × 2 | 44,0 | 59,0 | 661,06 Kč | 799,88 Kč | 24,67 € | 29,85 € | 0 | ks | |
| XK-30S | 400 | 30 | M42 × 2 | 48,0 | 64,0 | 816,92 Kč | 988,47 Kč | 30,48 € | 36,88 € | 0 | ks | |
| XK-38S | 400 | 38 | M52 × 2 | 53,0 | 68,0 | 1 395,53 Kč | 1 688,59 Kč | 52,07 € | 63,00 € | 0 | ks |
