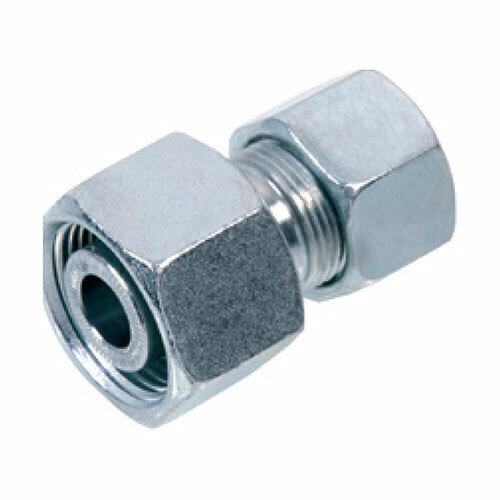

Redukovaná šroubení R-S
- ocelová šroubení s přímým tvarem vyrobená dle standardů norem ISO 8434-1 a 8434-4
- dodáváno v různých tlakových třídách LL – velmi lehká řada, L – lehká řada, S – těžká řada
- pracovní tlak PN je uveden pro teplotu do +120 °C a pro statický tlak podle normy DIN 2401
- pracovní teplota pro ocelová šroubení -40/+120 °C, pracovní teplota standardního těsnění NBR -35/+100 °C
- upozornění: pro šroubení použijte výhradně přesné bezešvé ocelové trubky s rozměry dle EN 10305, samostatné tělo šroubení je v obj. č. označeno písmenem X
1
2
| Obj. č. |
Tlak PN (bar) |
Trubka D2 (mm) |
Trubka D1 (mm) |
Závit d1 |
Délka L1 (mm) |
Cena bez DPH | Cena vč. DPH | Cena bez DPH | Cena vč. DPH | Skladem | Mj | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R-68S | 800 | 6 | 8 | M16 × 1,5 | 25,0 | 197,42 Kč | 238,88 Kč | 7,59 € | 9,18 € | 0 | ks | |
| R-610S | 800 | 6 | 10 | M18 × 1,5 | 25,0 | 129,64 Kč | 156,86 Kč | 4,99 € | 6,04 € | 0 | ks | |
| R-810S | 800 | 8 | 10 | M18 × 1,5 | 25,0 | 136,94 Kč | 165,70 Kč | 5,27 € | 6,38 € | 0 | ks | |
| R-812S | 630 | 8 | 12 | M20 × 1,5 | 26,0 | 119,65 Kč | 144,78 Kč | 4,60 € | 5,57 € | 0 | ks | |
| R-1012S | 630 | 10 | 12 | M20 × 1,5 | 27,0 | 126,30 Kč | 152,82 Kč | 4,86 € | 5,88 € | 0 | ks | |
| R-1014S | 630 | 10 | 14 | M22 × 1,5 | 27,0 | 328,37 Kč | 397,33 Kč | 12,63 € | 15,28 € | 0 | ks | |
| R-1214S | 630 | 12 | 14 | M22 × 1,5 | 27,0 | 333,02 Kč | 402,95 Kč | 12,81 € | 15,50 € | 0 | ks | |
| R-616S | 630 | 6 | 16 | M24 × 1,5 | 26,0 | 343,01 Kč | 415,04 Kč | 13,19 € | 15,96 € | 0 | ks | |
| R-816S | 630 | 8 | 16 | M24 × 1,5 | 26,0 | 170,18 Kč | 205,92 Kč | 6,55 € | 7,93 € | 0 | ks | |
| R-1016S | 630 | 10 | 16 | M24 × 1,5 | 27,0 | 176,82 Kč | 213,95 Kč | 6,80 € | 8,23 € | 0 | ks | |
| R-1216S | 630 | 12 | 16 | M24 × 1,5 | 27,0 | 181,47 Kč | 219,58 Kč | 6,98 € | 8,45 € | 0 | ks | |
| R-1416S | 630 | 14 | 16 | M24 × 1,5 | 30,0 | 393,53 Kč | 476,17 Kč | 15,14 € | 18,32 € | 0 | ks | |
| R-820S | 400 | 8 | 20 | M30 × 2 | 27,0 | 297,13 Kč | 359,53 Kč | 11,43 € | 13,83 € | 0 | ks | |
| R-1020S | 400 | 10 | 20 | M30 × 2 | 28,0 | 264,55 Kč | 320,11 Kč | 10,18 € | 12,32 € | 0 | ks | |
| R-1220S | 400 | 12 | 20 | M30 × 2 | 28,0 | 222,70 Kč | 269,47 Kč | 8,57 € | 10,37 € | 0 | ks | |
| R-1620S | 400 | 16 | 20 | M30 × 2 | 31,0 | 256,59 Kč | 310,47 Kč | 9,87 € | 11,94 € | 0 | ks | |
| R-825S | 400 | 8 | 25 | M36 × 2 | 28,0 | 513,84 Kč | 621,75 Kč | 19,76 € | 23,91 € | 0 | ks | |
| R-1225S | 400 | 12 | 25 | M36 × 2 | 29,0 | 396,84 Kč | 480,18 Kč | 15,26 € | 18,46 € | 0 | ks | |
| R-1625S | 400 | 16 | 25 | M36 × 2 | 31,0 | 394,85 Kč | 477,77 Kč | 15,19 € | 18,38 € | 0 | ks | |
| R-2025S | 400 | 20 | 25 | M36 × 2 | 35,0 | 434,07 Kč | 525,22 Kč | 16,70 € | 20,21 € | 0 | ks | |
| R-1630S | 400 | 16 | 30 | M42 × 2 | 31,0 | 524,48 Kč | 634,62 Kč | 20,17 € | 24,41 € | 0 | ks | |
| R-2030S | 400 | 20 | 30 | M42 × 2 | 35,0 | 559,03 Kč | 676,43 Kč | 21,50 € | 26,02 € | 0 | ks | |
| R-2530S | 400 | 25 | 30 | M42 × 2 | 38,0 | 640,14 Kč | 774,57 Kč | 24,62 € | 29,79 € | 0 | ks | |
| R-1638S | 400 | 16 | 38 | M52 × 2 | 31,0 | 809,64 Kč | 979,66 Kč | 31,14 € | 37,68 € | 0 | ks | |
| R-2038S | 400 | 20 | 38 | M52 × 2 | 35,0 | 822,93 Kč | 995,75 Kč | 31,65 € | 38,30 € | 0 | ks | |
| R-2538S | 400 | 25 | 38 | M52 × 2 | 38,0 | 895,39 Kč | 1 083,42 Kč | 34,44 € | 41,67 € | 0 | ks | |
| R-3038S | 400 | 30 | 38 | M52 × 2 | 41,0 | 935,93 Kč | 1 132,48 Kč | 36,00 € | 43,56 € | 0 | ks | |
| XR-68S | 800 | 6 | 8 | M16 × 1,5 | 25,0 | 180,82 Kč | 218,79 Kč | 6,95 € | 8,41 € | 0 | ks | |
| XR-610S | 800 | 6 | 10 | M18 × 1,5 | 25,0 | 112,35 Kč | 135,94 Kč | 4,32 € | 5,23 € | 0 | ks | |
| XR-810S | 800 | 8 | 10 | M18 × 1,5 | 25,0 | 118,31 Kč | 143,16 Kč | 4,55 € | 5,51 € | 0 | ks | |
| XR-812S | 630 | 8 | 12 | M20 × 1,5 | 26,0 | 101,71 Kč | 123,07 Kč | 3,91 € | 4,73 € | 0 | ks | |
| XR-1012S | 630 | 10 | 12 | M20 × 1,5 | 27,0 | 101,71 Kč | 123,07 Kč | 3,91 € | 4,73 € | 0 | ks | |
| XR-1014S | 630 | 10 | 14 | M22 × 1,5 | 27,0 | 303,78 Kč | 367,57 Kč | 11,68 € | 14,13 € | 0 | ks | |
| XR-1214S | 630 | 12 | 14 | M22 × 1,5 | 27,0 | 306,43 Kč | 370,78 Kč | 11,79 € | 14,27 € | 0 | ks | |
| XR-616S | 630 | 6 | 16 | M24 × 1,5 | 26,0 | 326,38 Kč | 394,92 Kč | 12,55 € | 15,19 € | 0 | ks | |
| XR-816S | 630 | 8 | 16 | M24 × 1,5 | 26,0 | 152,23 Kč | 184,20 Kč | 5,86 € | 7,09 € | 0 | ks | |
| XR-1016S | 630 | 10 | 16 | M24 × 1,5 | 27,0 | 152,23 Kč | 184,20 Kč | 5,86 € | 7,09 € | 0 | ks | |
| XR-1216S | 630 | 12 | 16 | M24 × 1,5 | 27,0 | 151,55 Kč | 183,38 Kč | 5,83 € | 7,05 € | 0 | ks | |
| XR-1416S | 630 | 14 | 16 | M24 × 1,5 | 30,0 | 349,00 Kč | 422,29 Kč | 13,42 € | 16,24 € | 0 | ks | |
| XR-820S | 400 | 8 | 20 | M30 × 2 | 27,0 | 279,19 Kč | 337,82 Kč | 10,74 € | 13,00 € | 0 | ks |
