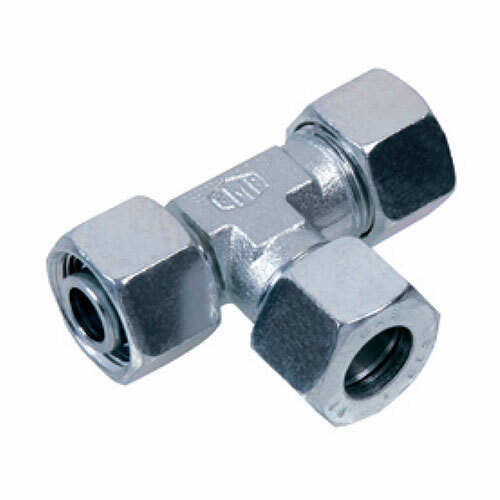

T-šroubení VDX
- t-šroubení a x-šroubení z nerezové oceli 1.4571 vyrobená dle standardů norem ISO 8434-1 a 8434-4
- dodáváno v různých tlakových třídách LL – velmi lehká řada, L – lehká řada, S – těžká řada
- pracovní tlak PN je uveden pro teplotu do +120 °C a pro statický tlak podle normy DIN 2401
- pracovní teplota pro ocelová šroubení -40/+120 °C, pracovní teplota standardního těsnění NBR -35/+100 °C
- upozornění: pro šroubení použijte výhradně přesné bezešvé ocelové trubky s rozměry dle EN 10305, tělo šroubení bez matice a řezného kroužku je v obj. č. označeno písmenem X
| Obj. č. |
Tlak PN (bar) |
Závit d1 |
Trubka D (mm) |
Délka L5 (mm) |
Výška L2 (mm) |
Cena bez DPH | Cena vč. DPH | Cena bez DPH | Cena vč. DPH | Skladem | Mj | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDX-6L | 315 | M12 × 1,5 | 6 | 53,0 | 27,0 | 952,57 Kč | 1 152,61 Kč | 36,64 € | 44,33 € | 0 | ks | |
| VDX-8L | 315 | M14 × 1,5 | 8 | 56,0 | 29,0 | 1 011,73 Kč | 1 224,19 Kč | 38,91 € | 47,08 € | 0 | ks | |
| VDX-10L | 315 | M16 × 1,5 | 10 | 59,0 | 30,0 | 1 241,05 Kč | 1 501,67 Kč | 47,73 € | 57,75 € | 0 | ks | |
| VDX-12L | 315 | M18 × 1,5 | 12 | 62,0 | 32,0 | 1 354,72 Kč | 1 639,21 Kč | 52,10 € | 63,04 € | 0 | ks | |
| VDX-15L | 315 | M22 × 1,5 | 15 | 70,0 | 36,0 | 1 796,12 Kč | 2 173,31 Kč | 69,08 € | 83,59 € | 0 | ks | |
| VDX-18L | 315 | M26 × 1,5 | 18 | 76,0 | 40,0 | 2 914,19 Kč | 3 526,17 Kč | 112,08 € | 135,62 € | 0 | ks | |
| VDX-22L | 160 | M30 × 2 | 22 | 83,0 | 44,0 | 3 041,17 Kč | 3 679,82 Kč | 116,97 € | 141,53 € | 0 | ks | |
| VDX-28L | 160 | M36 × 2 | 28 | 91,0 | 47,0 | 5 009,43 Kč | 6 061,41 Kč | 192,67 € | 233,13 € | 0 | ks | |
| VDX-35L | 160 | M45 × 2 | 35 | 111,0 | 56,0 | 7 289,47 Kč | 8 820,26 Kč | 280,36 € | 339,24 € | 0 | ks | |
| VDX-42L | 160 | M52 × 2 | 42 | 123,0 | 63,0 | 9 623,34 Kč | 11 644,24 Kč | 370,13 € | 447,86 € | 0 | ks | |
| VDX-6S | 630 | M14 × 1,5 | 6 | 58,0 | 31,0 | 947,26 Kč | 1 146,18 Kč | 36,43 € | 44,08 € | 0 | ks | |
| VDX-8S | 630 | M16 × 1,5 | 8 | 61,0 | 32,0 | 1 177,92 Kč | 1 425,28 Kč | 45,30 € | 54,81 € | 0 | ks | |
| VDX-10S | 630 | M18 × 1,5 | 10 | 66,0 | 34,0 | 1 522,24 Kč | 1 841,91 Kč | 58,55 € | 70,85 € | 0 | ks | |
| VDX-12S | 630 | M20 × 1,5 | 12 | 71,0 | 38,0 | 1 524,24 Kč | 1 844,33 Kč | 58,62 € | 70,93 € | 0 | ks | |
| VDX-14S | 630 | M22 × 1,5 | 14 | 76,0 | 40,0 | 1 748,91 Kč | 2 116,18 Kč | 67,27 € | 81,40 € | 0 | ks | |
| VDX-16S | 400 | M24 × 1,5 | 16 | 80,0 | 43,0 | 2 912,87 Kč | 3 524,57 Kč | 112,03 € | 135,56 € | 0 | ks | |
| VDX-20S | 400 | M30 × 2 | 20 | 93,0 | 48,0 | 3 346,26 Kč | 4 048,97 Kč | 128,70 € | 155,73 € | 0 | ks | |
| VDX-25S | 400 | M36 × 2 | 25 | 105,0 | 54,0 | 5 327,85 Kč | 6 446,70 Kč | 204,92 € | 247,95 € | 0 | ks | |
| VDX-30S | 400 | M42 × 2 | 30 | 119,0 | 62,0 | 6 626,73 Kč | 8 018,34 Kč | 254,87 € | 308,39 € | 0 | ks | |
| VDX-38S | 315 | M52 × 2 | 38 | 139,0 | 72,0 | 9 731,69 Kč | 11 775,34 Kč | 374,30 € | 452,90 € | 0 | ks | |
| XVDX-6L | 315 | M12 × 1,5 | 6 | 53,0 | 27,0 | 757,14 Kč | 916,14 Kč | 29,12 € | 35,24 € | 0 | ks | |
| XVDX-8L | 315 | M14 × 1,5 | 8 | 56,0 | 29,0 | 789,69 Kč | 955,52 Kč | 30,37 € | 36,75 € | 0 | ks | |
| XVDX-10L | 315 | M16 × 1,5 | 10 | 59,0 | 30,0 | 957,22 Kč | 1 158,24 Kč | 36,82 € | 44,55 € | 0 | ks | |
| XVDX-12L | 315 | M18 × 1,5 | 12 | 62,0 | 32,0 | 1 068,22 Kč | 1 292,55 Kč | 41,09 € | 49,72 € | 0 | ks | |
| XVDX-15L | 315 | M22 × 1,5 | 15 | 70,0 | 36,0 | 1 416,54 Kč | 1 714,01 Kč | 54,48 € | 65,92 € | 0 | ks | |
| XVDX-18L | 315 | M26 × 1,5 | 18 | 76,0 | 40,0 | 2 306,62 Kč | 2 791,01 Kč | 88,72 € | 107,35 € | 0 | ks | |
| XVDX-22L | 160 | M30 × 2 | 22 | 83,0 | 44,0 | 2 319,26 Kč | 2 806,30 Kč | 89,20 € | 107,93 € | 0 | ks | |
| XVDX-28L | 160 | M36 × 2 | 28 | 91,0 | 47,0 | 3 940,53 Kč | 4 768,04 Kč | 151,56 € | 183,39 € | 0 | ks | |
| XVDX-35L | 160 | M45 × 2 | 35 | 111,0 | 56,0 | 5 769,88 Kč | 6 981,55 Kč | 221,92 € | 268,52 € | 0 | ks | |
| XVDX-42L | 160 | M52 × 2 | 42 | 123,0 | 63,0 | 7 639,78 Kč | 9 244,13 Kč | 293,84 € | 355,55 € | 0 | ks | |
| XVDX-6S | 630 | M14 × 1,5 | 6 | 58,0 | 31,0 | 720,57 Kč | 871,89 Kč | 27,71 € | 33,53 € | 0 | ks | |
| XVDX-8S | 630 | M16 × 1,5 | 8 | 61,0 | 32,0 | 929,29 Kč | 1 124,44 Kč | 35,74 € | 43,25 € | 0 | ks | |
| XVDX-10S | 630 | M18 × 1,5 | 10 | 66,0 | 34,0 | 1 225,76 Kč | 1 483,17 Kč | 47,14 € | 57,04 € | 0 | ks | |
| XVDX-12S | 630 | M20 × 1,5 | 12 | 71,0 | 38,0 | 1 199,17 Kč | 1 451,00 Kč | 46,12 € | 55,81 € | 0 | ks | |
| XVDX-14S | 630 | M22 × 1,5 | 14 | 76,0 | 40,0 | 1 316,83 Kč | 1 593,36 Kč | 50,65 € | 61,29 € | 0 | ks | |
| XVDX-16S | 400 | M24 × 1,5 | 16 | 80,0 | 43,0 | 2 322,57 Kč | 2 810,31 Kč | 89,33 € | 108,09 € | 0 | ks | |
| XVDX-20S | 400 | M30 × 2 | 20 | 93,0 | 48,0 | 2 596,45 Kč | 3 141,70 Kč | 99,86 € | 120,83 € | 0 | ks | |
| XVDX-25S | 400 | M36 × 2 | 25 | 105,0 | 54,0 | 4 037,58 Kč | 4 885,47 Kč | 155,29 € | 187,90 € | 0 | ks | |
| XVDX-30S | 400 | M42 × 2 | 30 | 119,0 | 62,0 | 4 950,92 Kč | 5 990,61 Kč | 190,42 € | 230,41 € | 0 | ks | |
| XVDX-38S | 315 | M52 × 2 | 38 | 139,0 | 72,0 | 7 365,90 Kč | 8 912,74 Kč | 283,30 € | 342,79 € | 0 | ks |
Pro více informací o produktech prosím pište na nabidky@vskprofi.cz, nebo volejte +420 377 152 222.
kl-442 (361 kB)
