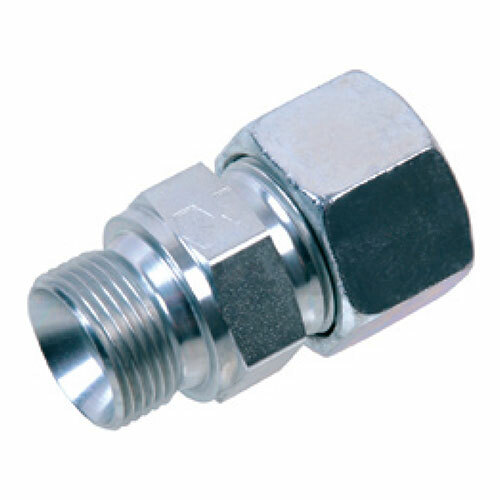

Přímá šroubení A-G
- ocelová šroubení s přímým tvarem vyrobená dle standardů norem ISO 8434-1 a 8434-4
- dodáváno v různých tlakových třídách LL – velmi lehká řada, L – lehká řada, S – těžká řada
- pracovní tlak PN je uveden pro teplotu do +120 °C a pro statický tlak podle normy DIN 2401
- pracovní teplota pro ocelová šroubení -40/+120 °C, pracovní teplota standardního těsnění NBR -35/+100 °C
- upozornění: pro šroubení použijte výhradně přesné bezešvé ocelové trubky s rozměry dle EN 10305, tělo šroubení bez matice a řezného kroužku je v obj. č. označeno písmenem X
| Obj. č. |
Tlak PN (bar) |
Závit G |
Trubka D (mm) |
Délka L1 (mm) |
Délka závitu i (mm) |
Cena bez DPH | Cena vč. DPH | Cena bez DPH | Cena vč. DPH | Skladem | Mj | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-R184LL | 100 | R 1/8" | 4 | 26,0 | 8,0 | 33,11 Kč | 40,06 Kč | 1,27 € | 1,54 € | 0 | ks | |
| A-R186LL | 100 | R 1/8" | 6 | 26,0 | 8,0 | 35,10 Kč | 42,47 Kč | 1,35 € | 1,63 € | 0 | ks | |
| A-R188LL | 100 | R 1/8" | 8 | 28,0 | 8,0 | 38,40 Kč | 46,46 Kč | 1,48 € | 1,79 € | 0 | ks | |
| A-G186L | 400 | G 1/8" | 6 | 23,0 | 8,0 | 35,10 Kč | 42,47 Kč | 1,35 € | 1,63 € | 0 | ks | |
| A-G146L | 400 | G 1/4" | 6 | 25,0 | 12,0 | 50,98 Kč | 61,69 Kč | 1,96 € | 2,37 € | 0 | ks | |
| A-G386L | 400 | G 3/8" | 6 | 26,0 | 12,0 | 70,19 Kč | 84,93 Kč | 2,70 € | 3,27 € | 0 | ks | |
| A-G126L | 400 | G 1/2" | 6 | 27,0 | 14,0 | 254,26 Kč | 307,65 Kč | 9,78 € | 11,83 € | 0 | ks | |
| A-G188L | 400 | G 1/8" | 8 | 24,0 | 8,0 | 71,50 Kč | 86,52 Kč | 2,75 € | 3,33 € | 0 | ks | |
| A-G148L | 400 | G 1/4" | 8 | 25,0 | 12,0 | 44,36 Kč | 53,68 Kč | 1,71 € | 2,07 € | 0 | ks | |
| A-G388L | 400 | G 3/8" | 8 | 26,0 | 12,0 | 63,57 Kč | 76,92 Kč | 2,45 € | 2,96 € | 0 | ks | |
| A-G128L | 400 | G 1/2" | 8 | 27,0 | 14,0 | 139,71 Kč | 169,05 Kč | 5,37 € | 6,50 € | 0 | ks | |
| A-G1410L | 400 | G 1/4" | 10 | 26,0 | 12,0 | 47,01 Kč | 56,88 Kč | 1,81 € | 2,19 € | 0 | ks | |
| A-G3810L | 400 | G 3/8" | 10 | 27,0 | 12,0 | 62,24 Kč | 75,31 Kč | 2,39 € | 2,89 € | 0 | ks | |
| A-G1210L | 400 | G 1/2" | 10 | 28,0 | 14,0 | 99,98 Kč | 120,98 Kč | 3,85 € | 4,66 € | 0 | ks | |
| A-G1412L | 400 | G 1/4" | 12 | 27,0 | 12,0 | 67,55 Kč | 81,74 Kč | 2,60 € | 3,15 € | 0 | ks | |
| A-G3812L | 400 | G 3/8" | 12 | 27,0 | 12,0 | 62,92 Kč | 76,13 Kč | 2,42 € | 2,93 € | 0 | ks | |
| A-G1212L | 400 | G 1/2" | 12 | 28,0 | 14,0 | 92,05 Kč | 111,38 Kč | 3,54 € | 4,28 € | 0 | ks | |
| A-G3412L | 400 | G 3/4" | 12 | 29,0 | 16,0 | 189,38 Kč | 229,15 Kč | 7,28 € | 8,81 € | 0 | ks | |
| A-G3815L | 400 | G 3/8" | 15 | 29,0 | 12,0 | 107,28 Kč | 129,81 Kč | 4,13 € | 5,00 € | 0 | ks | |
| A-G1215L | 400 | G 1/2" | 15 | 29,0 | 14,0 | 87,41 Kč | 105,77 Kč | 3,36 € | 4,07 € | 0 | ks | |
| A-G3415L | 400 | G 3/4" | 15 | 30,0 | 16,0 | 317,18 Kč | 383,79 Kč | 12,20 € | 14,76 € | 0 | ks | |
| A-G3818L | 400 | G 3/8" | 18 | 29,5 | 12,0 | 232,41 Kč | 281,22 Kč | 8,94 € | 10,82 € | 0 | ks | |
| A-G1218L | 400 | G 1/2" | 18 | 31,0 | 14,0 | 112,57 Kč | 136,21 Kč | 4,33 € | 5,24 € | 0 | ks | |
| A-G3418L | 400 | G 3/4" | 18 | 30,0 | 16,0 | 208,59 Kč | 252,39 Kč | 8,02 € | 9,70 € | 0 | ks | |
| A-G1222L | 250 | G 1/2" | 22 | 47,0 | 14,0 | 288,05 Kč | 348,54 Kč | 11,08 € | 13,41 € | 0 | ks | |
| A-G3422L | 250 | G 3/4" | 22 | 33,0 | 16,0 | 164,88 Kč | 199,50 Kč | 6,34 € | 7,67 € | 0 | ks | |
| A-G3428L | 250 | G 3/4" | 28 | 34,0 | 16,0 | 678,72 Kč | 821,25 Kč | 26,10 € | 31,58 € | 0 | ks | |
| A-G1028L | 250 | G 1" | 28 | 34,0 | 18,0 | 301,95 Kč | 365,36 Kč | 11,61 € | 14,05 € | 0 | ks | |
| A-G1035L | 250 | G 1" | 35 | 39,0 | 18,0 | 876,68 Kč | 1 060,78 Kč | 33,72 € | 40,80 € | 0 | ks | |
| A-G5435L | 250 | G 1 1/4" | 35 | 39,0 | 20,0 | 438,35 Kč | 530,40 Kč | 16,86 € | 20,40 € | 0 | ks | |
| A-G1542L | 250 | G 1 1/2" | 42 | 42,0 | 22,0 | 521,77 Kč | 631,34 Kč | 20,07 € | 24,28 € | 0 | ks | |
| A-G146S | 630 | G 1/4" | 6 | 28,0 | 12,0 | 47,01 Kč | 56,88 Kč | 1,81 € | 2,19 € | 0 | ks | |
| A-G126S | 630 | G 1/2" | 6 | 33,0 | 14,0 | 307,23 Kč | 371,75 Kč | 11,82 € | 14,30 € | 0 | ks | |
| A-G148S | 630 | G 1/4" | 8 | 30,0 | 12,0 | 52,32 Kč | 63,31 Kč | 2,01 € | 2,43 € | 0 | ks | |
| A-G388S | 630 | G 3/8" | 8 | 30,0 | 12,0 | 128,45 Kč | 155,42 Kč | 4,94 € | 5,98 € | 0 | ks | |
| A-G1410S | 630 | G 1/4" | 10 | 31,0 | 12,0 | 97,33 Kč | 117,77 Kč | 3,74 € | 4,53 € | 0 | ks | |
| A-G3810S | 630 | G 3/8" | 10 | 31,0 | 12,0 | 68,20 Kč | 82,52 Kč | 2,62 € | 3,17 € | 0 | ks | |
| A-G1210S | 630 | G 1/2" | 10 | 34,0 | 14,0 | 107,93 Kč | 130,60 Kč | 4,15 € | 5,02 € | 0 | ks | |
| A-G1412S | 630 | G 1/4" | 12 | 33,0 | 12,0 | 129,79 Kč | 157,05 Kč | 4,99 € | 6,04 € | 0 | ks | |
| A-G3812S | 630 | G 3/8" | 12 | 33,0 | 12,0 | 74,83 Kč | 90,54 Kč | 2,88 € | 3,48 € | 0 | ks |
Pro více informací o produktech prosím pište na nabidky@vskprofi.cz, nebo volejte +420 377 152 222.
