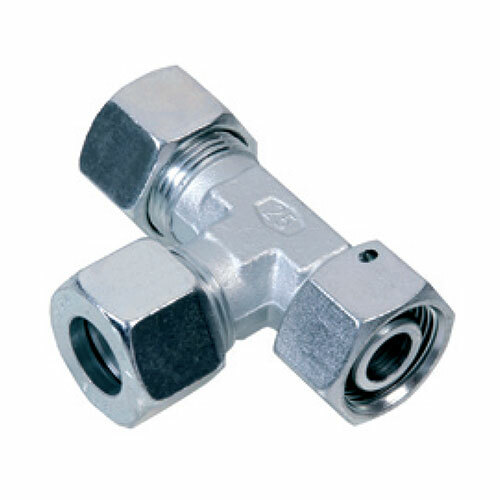

T-šroubení VDK
- ocelová t-šroubení a x-šroubení vyrobená dle standardů norem ISO 8434-1 a 8434-4
- dodáváno v různých tlakových třídách LL – velmi lehká řada, L – lehká řada, S – těžká řada
- pracovní tlak PN je uveden pro teplotu do +120 °C a pro statický tlak podle normy DIN 2401
- pracovní teplota pro ocelová šroubení -40/+120 °C, pracovní teplota standardního těsnění NBR -35/+100 °C
- upozornění: pro šroubení použijte výhradně přesné bezešvé ocelové trubky s rozměry dle EN 10305, tělo šroubení bez matice a řezného kroužku je v obj. č. označeno písmenem X
| Obj. č. |
Tlak PN (bar) |
Závit |
Trubka D (mm) |
Délka L3 (mm) |
Výška L (mm) |
Cena bez DPH | Cena vč. DPH | Cena bez DPH | Cena vč. DPH | Skladem | Mj | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDK-6L | 500 | M12 × 1,5 | 6 | 53,0 | 27,0 | 251,26 Kč | 304,02 Kč | 9,66 € | 11,69 € | 0 | ks | |
| VDK-8L | 500 | M14 × 1,5 | 8 | 56,0 | 29,0 | 253,94 Kč | 307,27 Kč | 9,77 € | 11,82 € | 0 | ks | |
| VDK-10L | 500 | M16 × 1,5 | 10 | 59,0 | 30,0 | 276,53 Kč | 334,60 Kč | 10,64 € | 12,87 € | 0 | ks | |
| VDK-12L | 400 | M18 × 1,5 | 12 | 62,0 | 32,0 | 311,09 Kč | 376,42 Kč | 11,97 € | 14,48 € | 0 | ks | |
| VDK-15L | 400 | M22 × 1,5 | 15 | 70,0 | 36,0 | 404,83 Kč | 489,84 Kč | 15,57 € | 18,84 € | 0 | ks | |
| VDK-18L | 400 | M26 × 1,5 | 18 | 76,0 | 40,0 | 554,38 Kč | 670,80 Kč | 21,32 € | 25,80 € | 0 | ks | |
| VDK-22L | 250 | M30 × 2 | 22 | 83,0 | 44,0 | 812,31 Kč | 982,90 Kč | 31,24 € | 37,80 € | 0 | ks | |
| VDK-28L | 250 | M36 × 2 | 28 | 91,0 | 47,0 | 1 226,44 Kč | 1 483,99 Kč | 47,17 € | 57,08 € | 0 | ks | |
| VDK-35L | 250 | M45 × 2 | 35 | 111,0 | 56,0 | 1 678,46 Kč | 2 030,94 Kč | 64,56 € | 78,12 € | 0 | ks | |
| VDK-42L | 250 | M52 × 2 | 42 | 123,0 | 63,0 | 2 480,11 Kč | 3 000,93 Kč | 95,39 € | 115,42 € | 0 | ks | |
| VDK-6S | 800 | M14 × 1,5 | 6 | 58,0 | 31,0 | 284,50 Kč | 344,25 Kč | 10,94 € | 13,24 € | 0 | ks | |
| VDK-8S | 800 | M16 × 1,5 | 8 | 61,0 | 32,0 | 282,52 Kč | 341,85 Kč | 10,87 € | 13,15 € | 0 | ks | |
| VDK-10S | 800 | M18 × 1,5 | 10 | 66,0 | 34,0 | 349,00 Kč | 422,29 Kč | 13,42 € | 16,24 € | 0 | ks | |
| VDK-12S | 630 | M20 × 1,5 | 12 | 71,0 | 38,0 | 387,54 Kč | 468,92 Kč | 14,91 € | 18,04 € | 0 | ks | |
| VDK-14S | 630 | M22 × 1,5 | 14 | 76,0 | 40,0 | 646,79 Kč | 782,62 Kč | 24,88 € | 30,10 € | 0 | ks | |
| VDK-16S | 630 | M24 × 1,5 | 16 | 80,0 | 43,0 | 603,57 Kč | 730,32 Kč | 23,21 € | 28,08 € | 0 | ks | |
| VDK-20S | 400 | M30 × 2 | 20 | 93,0 | 48,0 | 877,45 Kč | 1 061,71 Kč | 33,75 € | 40,84 € | 0 | ks | |
| VDK-25S | 400 | M36 × 2 | 25 | 105,0 | 54,0 | 1 326,81 Kč | 1 605,44 Kč | 51,03 € | 61,75 € | 0 | ks | |
| VDK-30S | 400 | M42 × 2 | 30 | 119,0 | 62,0 | 1 715,01 Kč | 2 075,16 Kč | 65,96 € | 79,81 € | 0 | ks | |
| VDK-38S | 400 | M52 × 2 | 38 | 139,0 | 72,0 | 2 734,71 Kč | 3 309,00 Kč | 105,18 € | 127,27 € | 0 | ks | |
| XVDK-6L | 500 | M12 × 1,5 | 6 | 53,0 | 27,0 | 218,02 Kč | 263,80 Kč | 8,39 € | 10,15 € | 0 | ks | |
| XVDK-8L | 500 | M14 × 1,5 | 8 | 56,0 | 29,0 | 218,02 Kč | 263,80 Kč | 8,39 € | 10,15 € | 0 | ks | |
| XVDK-10L | 500 | M16 × 1,5 | 10 | 59,0 | 30,0 | 236,65 Kč | 286,35 Kč | 9,10 € | 11,01 € | 0 | ks | |
| XVDK-12L | 400 | M18 × 1,5 | 12 | 62,0 | 32,0 | 261,90 Kč | 316,90 Kč | 10,07 € | 12,18 € | 0 | ks | |
| XVDK-15L | 400 | M22 × 1,5 | 15 | 70,0 | 36,0 | 340,35 Kč | 411,82 Kč | 13,09 € | 15,84 € | 0 | ks | |
| XVDK-18L | 400 | M26 × 1,5 | 18 | 76,0 | 40,0 | 444,03 Kč | 537,28 Kč | 17,08 € | 20,67 € | 0 | ks | |
| XVDK-22L | 250 | M30 × 2 | 22 | 83,0 | 44,0 | 661,42 Kč | 800,32 Kč | 25,44 € | 30,78 € | 0 | ks | |
| XVDK-28L | 250 | M36 × 2 | 28 | 91,0 | 47,0 | 973,16 Kč | 1 177,52 Kč | 37,43 € | 45,29 € | 0 | ks | |
| XVDK-35L | 250 | M45 × 2 | 35 | 111,0 | 56,0 | 1 331,46 Kč | 1 611,07 Kč | 51,21 € | 61,96 € | 0 | ks | |
| XVDK-42L | 250 | M52 × 2 | 42 | 123,0 | 63,0 | 2 081,27 Kč | 2 518,34 Kč | 80,05 € | 96,86 € | 0 | ks | |
| XVDK-6S | 800 | M14 × 1,5 | 6 | 58,0 | 31,0 | 249,29 Kč | 301,64 Kč | 9,59 € | 11,60 € | 0 | ks | |
| XVDK-8S | 800 | M16 × 1,5 | 8 | 61,0 | 32,0 | 243,30 Kč | 294,39 Kč | 9,36 € | 11,33 € | 0 | ks | |
| XVDK-10S | 800 | M18 × 1,5 | 10 | 66,0 | 34,0 | 300,47 Kč | 363,57 Kč | 11,56 € | 13,99 € | 0 | ks | |
| XVDK-12S | 630 | M20 × 1,5 | 12 | 71,0 | 38,0 | 329,71 Kč | 398,95 Kč | 12,68 € | 15,34 € | 0 | ks | |
| XVDK-14S | 630 | M22 × 1,5 | 14 | 76,0 | 40,0 | 554,38 Kč | 670,80 Kč | 21,32 € | 25,80 € | 0 | ks | |
| XVDK-16S | 630 | M24 × 1,5 | 16 | 80,0 | 43,0 | 487,25 Kč | 589,57 Kč | 18,74 € | 22,68 € | 0 | ks | |
| XVDK-20S | 400 | M30 × 2 | 20 | 93,0 | 48,0 | 711,26 Kč | 860,62 Kč | 27,36 € | 33,11 € | 0 | ks | |
| XVDK-25S | 400 | M36 × 2 | 25 | 105,0 | 54,0 | 1 042,29 Kč | 1 261,17 Kč | 40,09 € | 48,51 € | 0 | ks | |
| XVDK-30S | 400 | M42 × 2 | 30 | 119,0 | 62,0 | 1 350,75 Kč | 1 634,41 Kč | 51,95 € | 62,86 € | 0 | ks | |
| XVDK-38S | 400 | M52 × 2 | 38 | 139,0 | 72,0 | 2 216,22 Kč | 2 681,63 Kč | 85,24 € | 103,14 € | 0 | ks |
