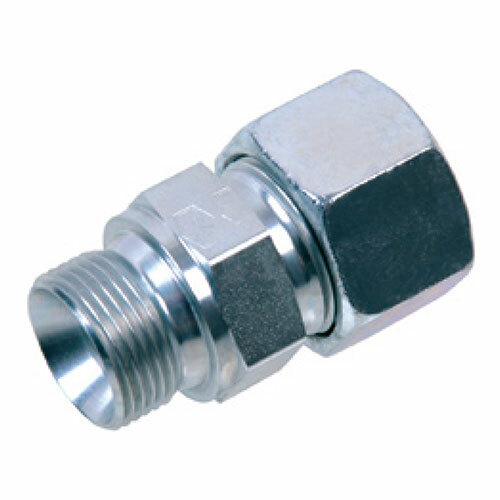

Přímá šroubení A-N
- ocelová šroubení s přímým tvarem vyrobená dle standardů norem ISO 8434-1 a 8434-4
- dodáváno v různých tlakových třídách LL – velmi lehká řada, L – lehká řada, S – těžká řada
- pracovní tlak PN je uveden pro teplotu do +120 °C a pro statický tlak podle normy DIN 2401
- pracovní teplota pro ocelová šroubení -40/+120 °C, pracovní teplota standardního těsnění NBR -35/+100 °C
- upozornění: pro šroubení použijte výhradně přesné bezešvé ocelové trubky s rozměry dle EN 10305, tělo šroubení bez matice a řezného kroužku je v obj. č. označeno písmenem X
1
2
| Obj. č. |
Tlak PN (bar) |
Závit G |
Trubka D (mm) |
Délka L1 (mm) |
Délka závitu i (mm) |
Cena bez DPH | Cena vč. DPH | Cena bez DPH | Cena vč. DPH | Skladem | Mj | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-N184LL | 100 | 1/8" NPT | 4 | 28,0 | 10,0 | 53,18 Kč | 64,35 Kč | 2,05 € | 2,48 € | 0 | ks | |
| A-N186LL | 100 | 1/8" NPT | 6 | 28,0 | 10,0 | 51,84 Kč | 62,73 Kč | 1,99 € | 2,41 € | 0 | ks | |
| A-N188LL | 100 | 1/8" NPT | 8 | 30,0 | 10,0 | 58,49 Kč | 70,77 Kč | 2,25 € | 2,72 € | 0 | ks | |
| A-N186L | 500 | 1/8" NPT | 6 | 32,0 | 10,0 | 39,23 Kč | 47,47 Kč | 1,51 € | 1,83 € | 0 | ks | |
| A-N146L | 500 | 1/4" NPT | 6 | 38,0 | 15,1 | 53,18 Kč | 64,35 Kč | 2,05 € | 2,48 € | 0 | ks | |
| A-N148L | 500 | 1/4" NPT | 8 | 38,0 | 15,0 | 55,83 Kč | 67,55 Kč | 2,15 € | 2,60 € | 0 | ks | |
| A-N1410L | 500 | 1/4" NPT | 10 | 39,0 | 15,0 | 61,82 Kč | 74,80 Kč | 2,38 € | 2,88 € | 0 | ks | |
| A-N3810L | 500 | 3/8" NPT | 10 | 40,0 | 15,2 | 71,78 Kč | 86,85 Kč | 2,76 € | 3,34 € | 0 | ks | |
| A-N1412L | 400 | 1/4" NPT | 12 | 40,0 | 15,1 | 74,46 Kč | 90,10 Kč | 2,86 € | 3,46 € | 0 | ks | |
| A-N3812L | 400 | 3/8" NPT | 12 | 40,0 | 15,0 | 71,12 Kč | 86,06 Kč | 2,74 € | 3,32 € | 0 | ks | |
| A-N1212L | 400 | 1/2" NPT | 12 | 45,0 | 19,8 | 87,75 Kč | 106,18 Kč | 3,38 € | 4,09 € | 0 | ks | |
| A-N1215L | 400 | 1/2" NPT | 15 | 46,0 | 20,0 | 97,71 Kč | 118,23 Kč | 3,76 € | 4,55 € | 0 | ks | |
| A-N1218L | 400 | 1/2" NPT | 18 | 48,0 | 20,0 | 126,30 Kč | 152,82 Kč | 4,86 € | 5,88 € | 0 | ks | |
| A-N3422L | 250 | 3/4" NPT | 22 | 50,0 | 20,0 | 181,47 Kč | 219,58 Kč | 6,98 € | 8,45 € | 0 | ks | |
| A-N1028L | 250 | 1" NPT | 28 | 56,0 | 25,0 | 337,02 Kč | 407,79 Kč | 12,96 € | 15,68 € | 0 | ks | |
| A-N5435L | 250 | 1 1/4" NPT | 35 | 62,0 | 25,6 | 619,54 Kč | 749,64 Kč | 23,83 € | 28,83 € | 0 | ks | |
| A-N1542L | 250 | 1 1/2" NPT | 42 | 65,0 | 26,0 | 683,34 Kč | 826,84 Kč | 26,28 € | 31,80 € | 0 | ks | |
| A-N146S | 800 | 1/4" NPT | 6 | 43,0 | 15,0 | 62,48 Kč | 75,60 Kč | 2,40 € | 2,90 € | 0 | ks | |
| A-N148S | 800 | 1/4" NPT | 8 | 43,0 | 15,0 | 67,81 Kč | 82,05 Kč | 2,61 € | 3,16 € | 0 | ks | |
| A-N1410S | 800 | 1/4" NPT | 10 | 44,0 | 15,1 | 79,77 Kč | 96,52 Kč | 3,07 € | 3,71 € | 0 | ks | |
| A-N3810S | 800 | 3/8" NPT | 10 | 44,0 | 15,0 | 86,42 Kč | 104,57 Kč | 3,32 € | 4,02 € | 0 | ks | |
| A-N1412S | 630 | 1/4" NPT | 12 | 46,0 | 15,1 | 96,40 Kč | 116,64 Kč | 3,71 € | 4,49 € | 0 | ks | |
| A-N3812S | 630 | 3/8" NPT | 12 | 46,0 | 15,0 | 99,71 Kč | 120,65 Kč | 3,84 € | 4,65 € | 0 | ks | |
| A-N1212S | 630 | 1/2" NPT | 12 | 51,0 | 19,8 | 105,70 Kč | 127,90 Kč | 4,07 € | 4,92 € | 0 | ks | |
| A-N1214S | 630 | 1/2" NPT | 14 | 54,0 | 20,0 | 144,90 Kč | 175,33 Kč | 5,57 € | 6,74 € | 0 | ks | |
| A-N1216S | 630 | 1/2" NPT | 16 | 54,0 | 20,0 | 151,55 Kč | 183,38 Kč | 5,83 € | 7,05 € | 0 | ks | |
| A-N3420S | 400 | 3/4" NPT | 20 | 59,0 | 20,0 | 228,66 Kč | 276,68 Kč | 8,79 € | 10,64 € | 0 | ks | |
| A-N1025S | 400 | 1" NPT | 25 | 69,0 | 25,0 | 388,20 Kč | 469,72 Kč | 14,93 € | 18,07 € | 0 | ks | |
| A-N5430S | 400 | 1 1/4" NPT | 30 | 73,0 | 25,6 | 589,62 Kč | 713,44 Kč | 22,68 € | 27,44 € | 0 | ks | |
| A-N1538S | 400 | 1 1/2" NPT | 38 | 80,0 | 26,0 | 781,07 Kč | 945,09 Kč | 30,04 € | 36,35 € | 0 | ks | |
| XA-N184LL | 100 | 1/8" NPT | 4 | 28,0 | 10,0 | 35,89 Kč | 43,43 Kč | 1,38 € | 1,67 € | 0 | ks | |
| XA-N186LL | 100 | 1/8" NPT | 6 | 28,0 | 10,0 | 34,58 Kč | 41,84 Kč | 1,33 € | 1,61 € | 0 | ks | |
| XA-N188LL | 100 | 1/8" NPT | 8 | 30,0 | 10,0 | 39,88 Kč | 48,25 Kč | 1,53 € | 1,85 € | 0 | ks | |
| XA-N186L | 500 | 1/8" NPT | 6 | 32,0 | 10,0 | 21,94 Kč | 26,55 Kč | 0,84 € | 1,02 € | 0 | ks | |
| XA-N146L | 500 | 1/4" NPT | 6 | 38,0 | 15,1 | 35,89 Kč | 43,43 Kč | 1,38 € | 1,67 € | 0 | ks | |
| XA-N148L | 500 | 1/4" NPT | 8 | 38,0 | 15,0 | 37,23 Kč | 45,05 Kč | 1,43 € | 1,73 € | 0 | ks | |
| XA-N1410L | 500 | 1/4" NPT | 10 | 39,0 | 15,0 | 40,54 Kč | 49,05 Kč | 1,56 € | 1,89 € | 0 | ks | |
| XA-N3810L | 500 | 3/8" NPT | 10 | 40,0 | 15,2 | 51,18 Kč | 61,93 Kč | 1,97 € | 2,38 € | 0 | ks | |
| XA-N1412L | 400 | 1/4" NPT | 12 | 40,0 | 15,1 | 48,53 Kč | 58,72 Kč | 1,87 € | 2,26 € | 0 | ks | |
| XA-N3812L | 400 | 3/8" NPT | 12 | 40,0 | 15,0 | 45,19 Kč | 54,68 Kč | 1,74 € | 2,11 € | 0 | ks |
Pro více informací o produktech prosím pište na nabidky@vskprofi.cz, nebo volejte +420 377 152 222.
