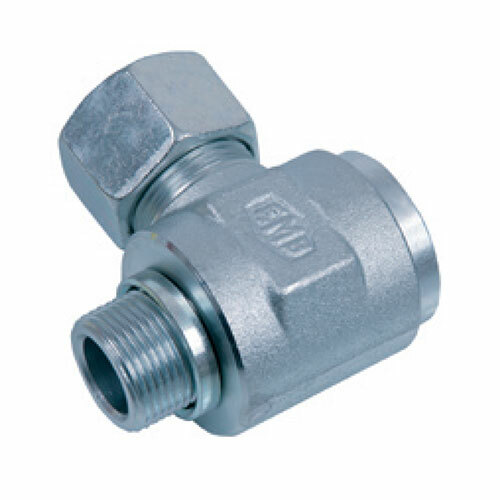

Úhlová šroubení SB-G
- ocelová šroubení s úhlovým tvarem nebo pro rozdělení jako t-kus tvořená objímkou, dutým šroubem a těsnícími kroužky
- dodáváno v různých tlakových třídách LL – velmi lehká řada, L – lehká řada, S – těžká řada
- pracovní tlak PN je uveden pro teplotu do +120°C a pro statický tlak podle normy DIN 2401
- pracovní teplota pro ocelová šroubení -40/+120°C, pracovní teplota standardního těsnění NBR -35/+100°C
- upozornění: pro šroubení použijte výhradně přesné bezešvé ocelové trubky s rozměry dle EN 10305, tělo šroubení bez matice a řezného kroužku je v obj. č. označeno písmenem X, pro objednání dutého šroubu a těsnících kroužků nás kontaktujte
| Obj. č. |
Tlak PN (bar) |
Závit G |
Trubka D (mm) |
Délka L2 (mm) |
Výška L3 (mm) |
Cena bez DPH | Cena vč. DPH | Cena bez DPH | Cena vč. DPH | Skladem | Mj | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SB-G6L | 500 | G 1/8" | 6 | 27,0 | 24,0 | 397,95 Kč | 481,52 Kč | 15,31 € | 18,53 € | 0 | ks | |
| SB-G8L | 500 | G 1/4" | 8 | 29,0 | 30,0 | 344,39 Kč | 416,71 Kč | 13,25 € | 16,03 € | 0 | ks | |
| SB-G10L | 500 | G 1/4" | 10 | 30,0 | 30,0 | 350,50 Kč | 424,11 Kč | 13,48 € | 16,31 € | 0 | ks | |
| SB-G12L | 400 | G 3/8" | 12 | 33,0 | 37,0 | 437,96 Kč | 529,93 Kč | 16,84 € | 20,38 € | 0 | ks | |
| SB-G15L | 400 | G 1/2" | 15 | 37,0 | 42,0 | 543,03 Kč | 657,07 Kč | 20,89 € | 25,28 € | 0 | ks | |
| SB-G18L | 400 | G 1/2" | 18 | 38,0 | 46,0 | 753,19 Kč | 911,36 Kč | 28,97 € | 35,05 € | 0 | ks | |
| SB-G22L | 250 | G 3/4" | 22 | 45,0 | 58,0 | 1 182,34 Kč | 1 430,63 Kč | 45,47 € | 55,02 € | 0 | ks | |
| SB-G28L | 250 | G 1" | 28 | 48,0 | 64,0 | 1 896,89 Kč | 2 295,24 Kč | 72,96 € | 88,28 € | 0 | ks | |
| SB-G35L | 250 | G 1 1/4" | 35 | 57,0 | 76,0 | 2 844,68 Kč | 3 442,06 Kč | 109,41 € | 132,39 € | 0 | ks | |
| SB-G42L | 250 | G 1 1/2" | 42 | 63,0 | 85,0 | 3 803,96 Kč | 4 602,79 Kč | 146,31 € | 177,04 € | 0 | ks | |
| SB-G6S | 800 | G 1/4" | 6 | 31,0 | 30,0 | 395,92 Kč | 479,06 Kč | 15,23 € | 18,43 € | 0 | ks | |
| SB-G8S | 800 | G 1/4" | 8 | 31,0 | 30,0 | 359,31 Kč | 434,77 Kč | 13,82 € | 16,72 € | 0 | ks | |
| SB-G10S | 800 | G 3/8" | 10 | 35,0 | 37,0 | 452,19 Kč | 547,15 Kč | 17,39 € | 21,04 € | 0 | ks | |
| SB-G12S | 630 | G 3/8" | 12 | 35,0 | 37,0 | 456,26 Kč | 552,07 Kč | 17,55 € | 21,24 € | 0 | ks | |
| SB-G14S | 630 | G 1/2" | 14 | 41,0 | 42,0 | 671,84 Kč | 812,93 Kč | 25,84 € | 31,27 € | 0 | ks | |
| SB-G16S | 630 | G 1/2" | 16 | 41,0 | 46,0 | 753,89 Kč | 912,21 Kč | 29,00 € | 35,09 € | 0 | ks | |
| SB-G20S | 400 | G 3/4" | 20 | 49,0 | 58,0 | 1 209,46 Kč | 1 463,45 Kč | 46,52 € | 56,29 € | 0 | ks | |
| SB-G25S | 400 | G 1" | 25 | 55,0 | 64,0 | 1 931,48 Kč | 2 337,09 Kč | 74,29 € | 89,89 € | 0 | ks | |
| SB-G30S | 400 | G 1 1/4" | 30 | 63,0 | 76,0 | 2 933,48 Kč | 3 549,51 Kč | 112,83 € | 136,52 € | 0 | ks | |
| SB-G38S | 400 | G 1 1/2" | 38 | 72,0 | 85,0 | 4 041,25 Kč | 4 889,91 Kč | 155,43 € | 188,07 € | 0 | ks | |
| XSB-G6L | 500 | G 1/8" | 6 | 27,0 | 24,0 | 380,32 Kč | 460,19 Kč | 14,63 € | 17,70 € | 0 | ks | |
| XSB-G8L | 500 | G 1/4" | 8 | 29,0 | 30,0 | 326,09 Kč | 394,57 Kč | 12,54 € | 15,17 € | 0 | ks | |
| XSB-G10L | 500 | G 1/4" | 10 | 30,0 | 30,0 | 330,83 Kč | 400,30 Kč | 12,72 € | 15,39 € | 0 | ks | |
| XSB-G12L | 400 | G 3/8" | 12 | 33,0 | 37,0 | 414,91 Kč | 502,04 Kč | 15,96 € | 19,31 € | 0 | ks | |
| XSB-G15L | 400 | G 1/2" | 15 | 37,0 | 42,0 | 511,86 Kč | 619,35 Kč | 19,69 € | 23,82 € | 0 | ks | |
| XSB-G18L | 400 | G 1/2" | 18 | 38,0 | 46,0 | 690,14 Kč | 835,07 Kč | 26,54 € | 32,11 € | 0 | ks | |
| XSB-G22L | 250 | G 3/4" | 22 | 45,0 | 58,0 | 1 103,69 Kč | 1 335,46 Kč | 42,45 € | 51,36 € | 0 | ks | |
| XSB-G28L | 250 | G 1" | 28 | 48,0 | 64,0 | 1 780,30 Kč | 2 154,16 Kč | 68,47 € | 82,85 € | 0 | ks | |
| XSB-G35L | 250 | G 1 1/4" | 35 | 57,0 | 76,0 | 2 671,12 Kč | 3 232,06 Kč | 102,74 € | 124,32 € | 0 | ks | |
| XSB-G42L | 250 | G 1 1/2" | 42 | 63,0 | 85,0 | 3 620,25 Kč | 4 380,50 Kč | 139,24 € | 168,48 € | 0 | ks | |
| XSB-G6S | 800 | G 1/4" | 6 | 31,0 | 30,0 | 378,29 Kč | 457,73 Kč | 14,55 € | 17,61 € | 0 | ks | |
| XSB-G8S | 800 | G 1/4" | 8 | 31,0 | 30,0 | 339,65 Kč | 410,98 Kč | 13,06 € | 15,80 € | 0 | ks | |
| XSB-G10S | 800 | G 3/8" | 10 | 35,0 | 37,0 | 427,11 Kč | 516,80 Kč | 16,43 € | 19,88 € | 0 | ks | |
| XSB-G12S | 630 | G 3/8" | 12 | 35,0 | 37,0 | 428,47 Kč | 518,45 Kč | 16,48 € | 19,94 € | 0 | ks | |
| XSB-G14S | 630 | G 1/2" | 14 | 41,0 | 42,0 | 626,42 Kč | 757,97 Kč | 24,09 € | 29,15 € | 0 | ks | |
| XSB-G16S | 630 | G 1/2" | 16 | 41,0 | 46,0 | 699,65 Kč | 846,58 Kč | 26,91 € | 32,56 € | 0 | ks | |
| XSB-G20S | 400 | G 3/4" | 20 | 49,0 | 58,0 | 1 142,36 Kč | 1 382,26 Kč | 43,94 € | 53,17 € | 0 | ks | |
| XSB-G25S | 400 | G 1" | 25 | 55,0 | 64,0 | 1 774,19 Kč | 2 146,77 Kč | 68,24 € | 82,57 € | 0 | ks | |
| XSB-G30S | 400 | G 1 1/4" | 30 | 63,0 | 76,0 | 2 766,03 Kč | 3 346,90 Kč | 106,39 € | 128,73 € | 0 | ks | |
| XSB-G38S | 400 | G 1 1/2" | 38 | 72,0 | 85,0 | 3 778,88 Kč | 4 572,44 Kč | 145,34 € | 175,86 € | 0 | ks |
ceny v Kč bez DPH
ceny v Kč vč. DPH
ceny v EUR bez DPH
ceny v EUR vč. DPH
kl-434 (353 kB)
