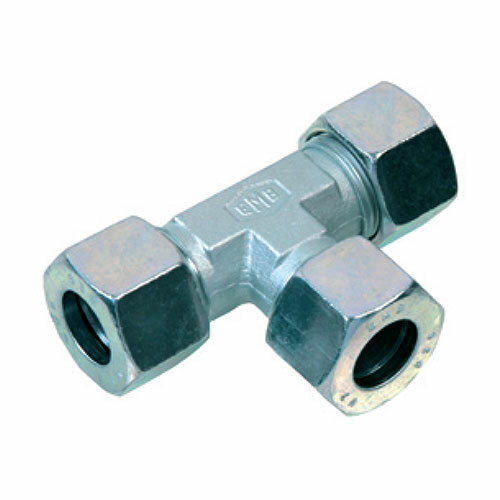

T-šroubení GX
- t-šroubení a x-šroubení z nerezové oceli 1.4571 vyrobená dle standardů norem ISO 8434-1 a 8434-4
- dodáváno v různých tlakových třídách LL – velmi lehká řada, L – lehká řada, S – těžká řada
- pracovní tlak PN je uveden pro teplotu do +120 °C a pro statický tlak podle normy DIN 2401
- pracovní teplota pro ocelová šroubení -40/+120 °C, pracovní teplota standardního těsnění NBR -35/+100 °C
- upozornění: pro šroubení použijte výhradně přesné bezešvé ocelové trubky s rozměry dle EN 10305, tělo šroubení bez matice a řezného kroužku je v obj. č. označeno písmenem X
1
2
| Obj. č. |
Tlak PN (bar) |
Trubka D (mm) |
Délka L2 (mm) |
SW S1 (mm) |
SW S2 (mm) |
Cena bez DPH | Cena vč. DPH | Cena bez DPH | Cena vč. DPH | Skladem | Mj | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GX-4LL | 100 | 4 | 21,0 | 10 | 9 | 923,98 Kč | 1 118,02 Kč | 35,54 € | 43,00 € | 0 | ks | |
| GX-6LL | 100 | 6 | 21,0 | 12 | 12 | 965,86 Kč | 1 168,69 Kč | 37,15 € | 44,95 € | 0 | ks | |
| GX-8LL | 100 | 8 | 23,0 | 14 | 12 | 1 095,47 Kč | 1 325,52 Kč | 42,13 € | 50,98 € | 0 | ks | |
| GX-6L | 315 | 6 | 27,0 | 14 | 12 | 695,97 Kč | 842,12 Kč | 26,77 € | 32,39 € | 0 | ks | |
| GX-8L | 315 | 8 | 29,0 | 17 | 14 | 745,84 Kč | 902,47 Kč | 28,69 € | 34,71 € | 0 | ks | |
| GX-10L | 315 | 10 | 30,0 | 19 | 17 | 839,56 Kč | 1 015,87 Kč | 32,29 € | 39,07 € | 0 | ks | |
| GX-12L | 315 | 12 | 32,0 | 22 | 19 | 988,46 Kč | 1 196,04 Kč | 38,02 € | 46,00 € | 0 | ks | |
| GX-15L | 315 | 15 | 36,0 | 27 | 19 | 1 365,36 Kč | 1 652,09 Kč | 52,51 € | 63,54 € | 0 | ks | |
| GX-18L | 315 | 18 | 40,0 | 32 | 24 | 1 939,02 Kč | 2 346,21 Kč | 74,58 € | 90,24 € | 0 | ks | |
| GX-22L | 160 | 22 | 44,0 | 36 | 27 | 2 613,74 Kč | 3 162,63 Kč | 100,53 € | 121,64 € | 0 | ks | |
| GX-28L | 160 | 28 | 47,0 | 41 | 36 | 4 158,58 Kč | 5 031,88 Kč | 159,95 € | 193,54 € | 0 | ks | |
| GX-35L | 160 | 35 | 56,0 | 50 | 41 | 6 996,99 Kč | 8 466,36 Kč | 269,12 € | 325,64 € | 0 | ks | |
| GX-42L | 160 | 42 | 63,0 | 60 | 50 | 9 802,16 Kč | 11 860,61 Kč | 377,01 € | 456,18 € | 0 | ks | |
| GX-6S | 630 | 6 | 31,0 | 17 | 14 | 751,81 Kč | 909,69 Kč | 28,92 € | 34,99 € | 0 | ks | |
| GX-8S | 630 | 8 | 32,0 | 19 | 17 | 818,28 Kč | 990,12 Kč | 31,47 € | 38,08 € | 0 | ks | |
| GX-10S | 630 | 10 | 34,0 | 22 | 19 | 1 001,75 Kč | 1 212,12 Kč | 38,53 € | 46,62 € | 0 | ks | |
| GX-12S | 630 | 12 | 38,0 | 24 | 22 | 1 206,50 Kč | 1 459,87 Kč | 46,40 € | 56,14 € | 0 | ks | |
| GX-14S | 630 | 14 | 40,0 | 27 | 19 | 1 624,60 Kč | 1 965,77 Kč | 62,48 € | 75,60 € | 0 | ks | |
| GX-16S | 400 | 16 | 43,0 | 30 | 24 | 1 912,43 Kč | 2 314,04 Kč | 73,56 € | 89,01 € | 0 | ks | |
| GX-20S | 400 | 20 | 48,0 | 36 | 27 | 2 667,58 Kč | 3 227,77 Kč | 102,60 € | 124,15 € | 0 | ks | |
| GX-25S | 400 | 25 | 54,0 | 46 | 36 | 4 490,94 Kč | 5 434,04 Kč | 172,73 € | 209,00 € | 0 | ks | |
| GX-30S | 400 | 30 | 62,0 | 50 | 41 | 6 464,54 Kč | 7 822,09 Kč | 248,64 € | 300,85 € | 0 | ks | |
| GX-38S | 315 | 38 | 72,0 | 60 | 50 | 10 179,72 Kč | 12 317,46 Kč | 391,53 € | 473,75 € | 0 | ks | |
| XGX-4LL | 100 | 4 | 21,0 | 10 | 9 | 624,19 Kč | 755,27 Kč | 24,01 € | 29,05 € | 0 | ks | |
| XGX-6LL | 100 | 6 | 21,0 | 12 | 12 | 634,83 Kč | 768,14 Kč | 24,42 € | 29,55 € | 0 | ks | |
| XGX-8LL | 100 | 8 | 23,0 | 14 | 12 | 712,60 Kč | 862,25 Kč | 27,41 € | 33,17 € | 0 | ks | |
| XGX-6L | 315 | 6 | 27,0 | 14 | 12 | 402,83 Kč | 487,42 Kč | 15,49 € | 18,74 € | 0 | ks | |
| XGX-8L | 315 | 8 | 29,0 | 17 | 14 | 412,79 Kč | 499,48 Kč | 15,88 € | 19,21 € | 0 | ks | |
| XGX-10L | 315 | 10 | 30,0 | 19 | 17 | 447,37 Kč | 541,32 Kč | 17,21 € | 20,82 € | 0 | ks | |
| XGX-12L | 315 | 12 | 32,0 | 22 | 19 | 555,06 Kč | 671,62 Kč | 21,35 € | 25,83 € | 0 | ks | |
| XGX-15L | 315 | 15 | 36,0 | 27 | 19 | 805,67 Kč | 974,86 Kč | 30,99 € | 37,50 € | 0 | ks | |
| XGX-18L | 315 | 18 | 40,0 | 32 | 24 | 1 021,69 Kč | 1 236,24 Kč | 39,30 € | 47,55 € | 0 | ks | |
| XGX-22L | 160 | 22 | 44,0 | 36 | 27 | 1 524,24 Kč | 1 844,33 Kč | 58,62 € | 70,93 € | 0 | ks | |
| XGX-28L | 160 | 28 | 47,0 | 41 | 36 | 2 554,57 Kč | 3 091,03 Kč | 98,25 € | 118,88 € | 0 | ks | |
| XGX-35L | 160 | 35 | 56,0 | 50 | 41 | 4 704,31 Kč | 5 692,22 Kč | 180,94 € | 218,94 € | 0 | ks | |
| XGX-42L | 160 | 42 | 63,0 | 60 | 50 | 6 781,62 Kč | 8 205,76 Kč | 260,83 € | 315,60 € | 0 | ks | |
| XGX-6S | 630 | 6 | 31,0 | 17 | 14 | 411,48 Kč | 497,89 Kč | 15,83 € | 19,15 € | 0 | ks | |
| XGX-8S | 630 | 8 | 32,0 | 19 | 17 | 446,03 Kč | 539,70 Kč | 17,16 € | 20,76 € | 0 | ks | |
| XGX-10S | 630 | 10 | 34,0 | 22 | 19 | 553,07 Kč | 669,21 Kč | 21,27 € | 25,74 € | 0 | ks | |
| XGX-12S | 630 | 12 | 38,0 | 24 | 22 | 720,57 Kč | 871,89 Kč | 27,71 € | 33,53 € | 0 | ks |
Pro více informací o produktech prosím pište na nabidky@vskprofi.cz, nebo volejte +420 377 152 222.
